Item |
DC Racking & Shelving-Metal Pallets |
Product Name |

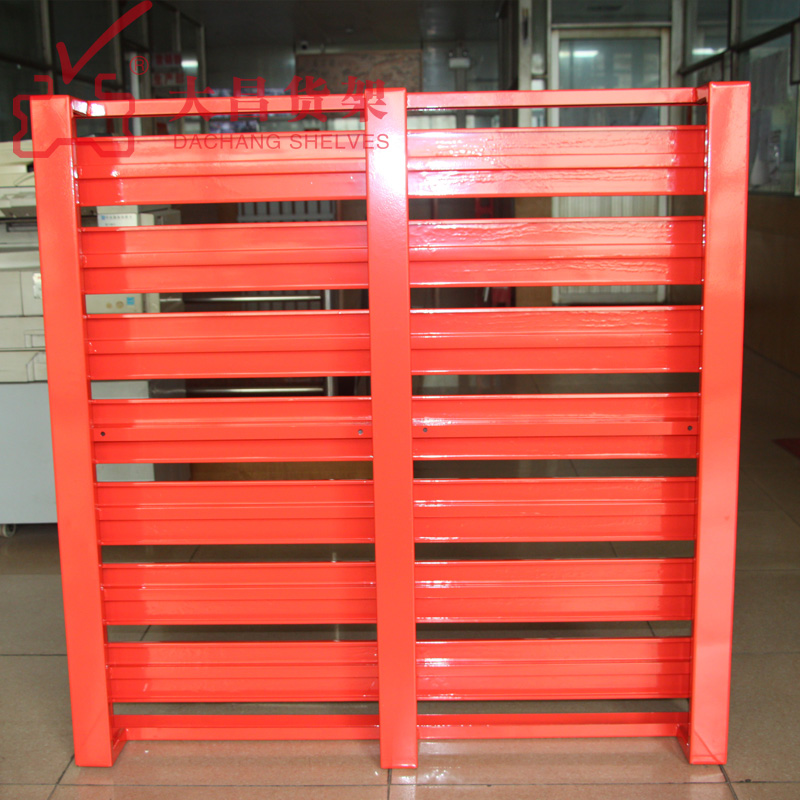

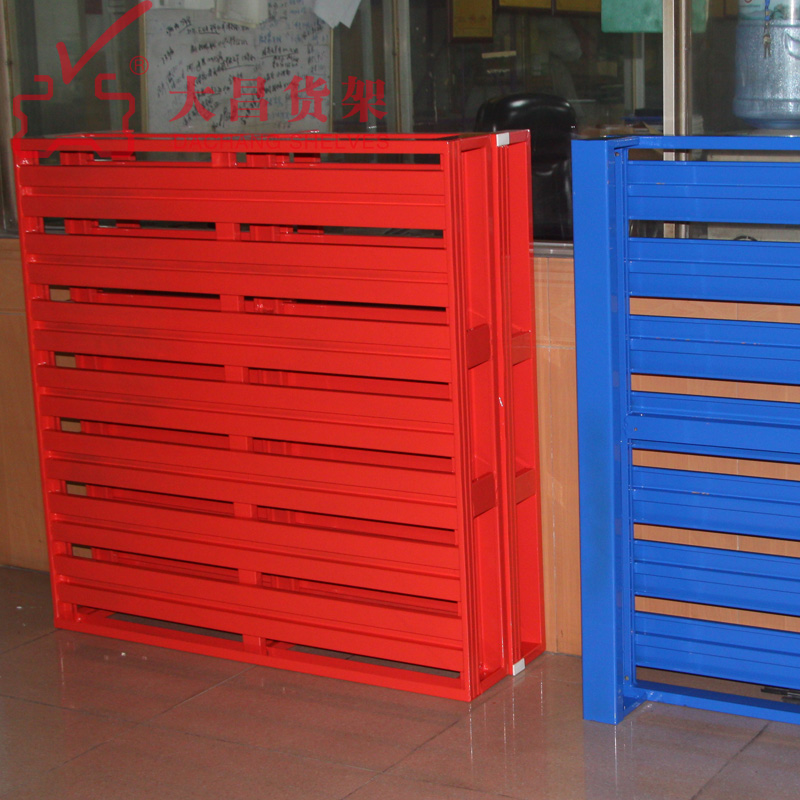

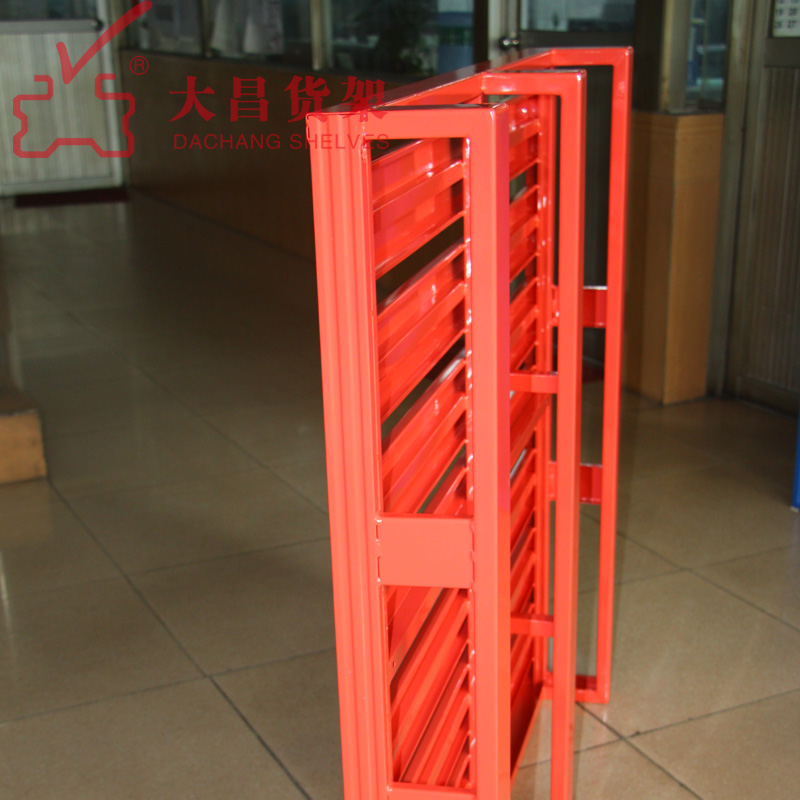

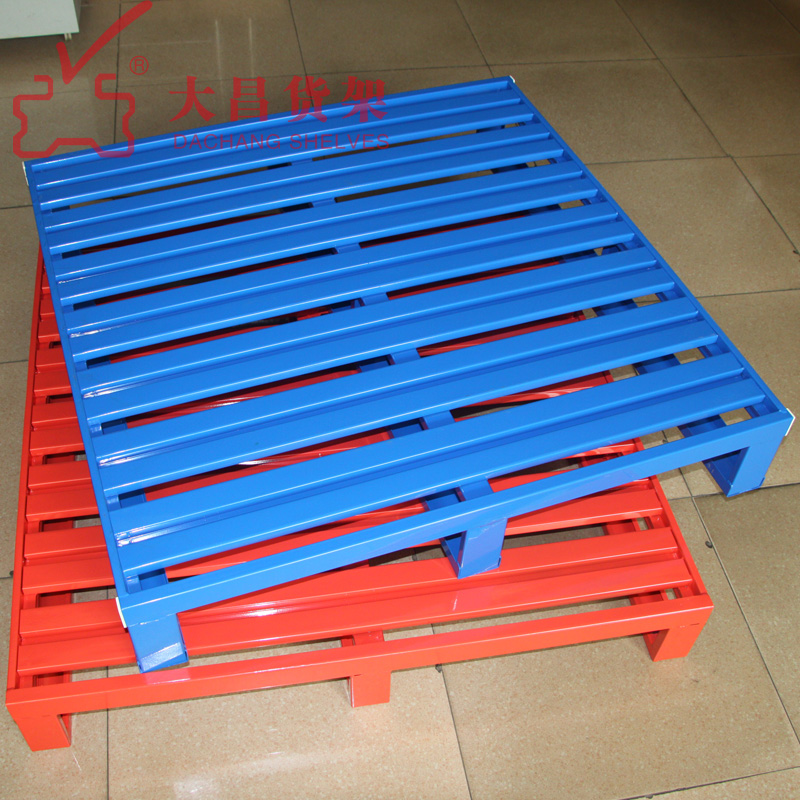

Waterproof Aluminum Pallets |
Material |
Aluminum alloy/Q235 Steel/Iron, Customized |
Entry Type |
4-Way |
Feature |
Recyclable, Corrosion protection |
Packaging Details |
Standard Export Packing |
MOQ |
By negotiated |
Certification |
SGS/CE/ISO9001/TUV |
Following Points Should Paid Attention To When Customizing The Metal Pallets:
1. The carrying capacity of metal pallets includes dynamic load and static load.
2. The height of the metal pallets, galvanized steel pallets.
3. How many entry type are used for metal pallets? If it is a two-way entry type, the structure of the metal pallets is relatively simple. The 100*50mm rectangular tube is used as the leg, and the leg height is 100mm, which can meet the height of the entry fork teeth of any handling equipment. If four-way entry feed fork is required, Dachang Racking & Shelving engineer team will according to how many entry type to design and calculate the height of the metal pallets.
4. How long are the legs of the metal pallets? This situation often occurs in practical situations. For example, just take a 1200*1000mm metal pallet, some descriptions say that the entry fork is inserted in the direction of 1000mm, so there are two interpretations. One is that the entry fork teeth are parallel to 1000mm, or it can be understood as perpendicular to 1000mm, which is a completely different result. The most direct, simplest and most understandable is to give the length of the leg, the leg length is 1200mm or 1000mm, there will be no misunderstanding.
5. The gap between the panels of the metal pallets. If the items placed on the metal pallets do not have strict requirements on the gap between the panels, the number of panels can meet the bearing capacity. If it is necessary to meet both the load-bearing requirements and the panel gap requirements, the size of the metal pallets panel gap should be given.
6. It is the surface treatment requirement of the metal pallets. At present, the basic methods of surface treatment of metal pallets are electrostatic powder coating and electroplating.
If you want to know more about how to customized the metal pallets, welcome to contact Dachang Racking & Shelving
